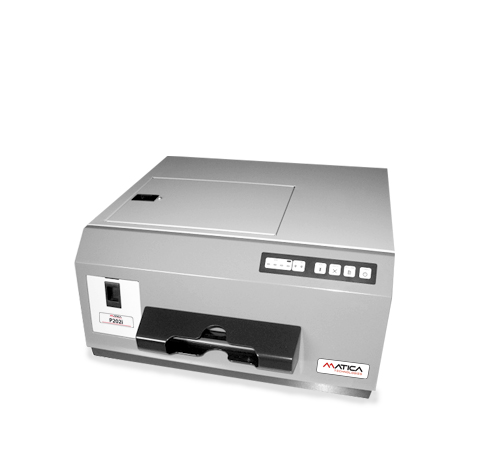

MATICA P202i Passport Printer , Printing technology:  4 Color thermal ink jet, Ink jet printhead : two PH are resident on the printer, ink is fed by Tanks PH 1: yellow/black or Yellow/UV; PH2: Cyan/Magenta Available inks: 66 ml for black; 28 ml ...

MATICA P202i Passport Printer , Printing technology:  4 Color thermal ink jet, Ink jet printhead : two PH are resident on the printer, ink is fed by Tanks PH 1: yellow/black or Yellow/UV; PH2: Cyan/Magenta Available inks: 66 ml for black; 28 ml for each CMY colors Data page printing time : 9 seconds using Plain paper and Normal Printing mode, Printed ICAO pages per ink KIT : 8000 Printing resolution : black up to 1200 dpi; color up to 4800 dpi Operator notification : error notification (printer status and near end or end of ink) 2 pages printing : Allowed included over the spine Machine Readable Passbook : up to 180 pages por hour Passport handling : fully clamped (four sides) during printing adjustable side platesand length of the tray to manage near standard booklets Supported OS : Windows (32- 64 bit), Server 2003 Connectivity : USB 2.0 recommended cable length 1,8m API R J45 allowing Ethernet connection Flash RAM-CPU : 32 MB CPU 192 MHz Printer language : HP PCL level 3 enhanced RFID reader and writer : available as option camera system (MRZ) : available as option Dimension WxDxH – Weight : 515 X 475 X 225 - 22 Kg Power Consumption (W): 32W (per I SO 10561 L etter Pattern), approx. 4W in stand-by mode Power (Input Voltage) 100 – 240 VAC (10% tollerance), 4A. 50-60Hz Regulation CE and UL Operating Environment 15C° to 35 °C (59°F to 95 °F) 20% to 80% R h Storage conditions -20C° to 70 °C (-4°F to 158 °F) 5% to 85% R h

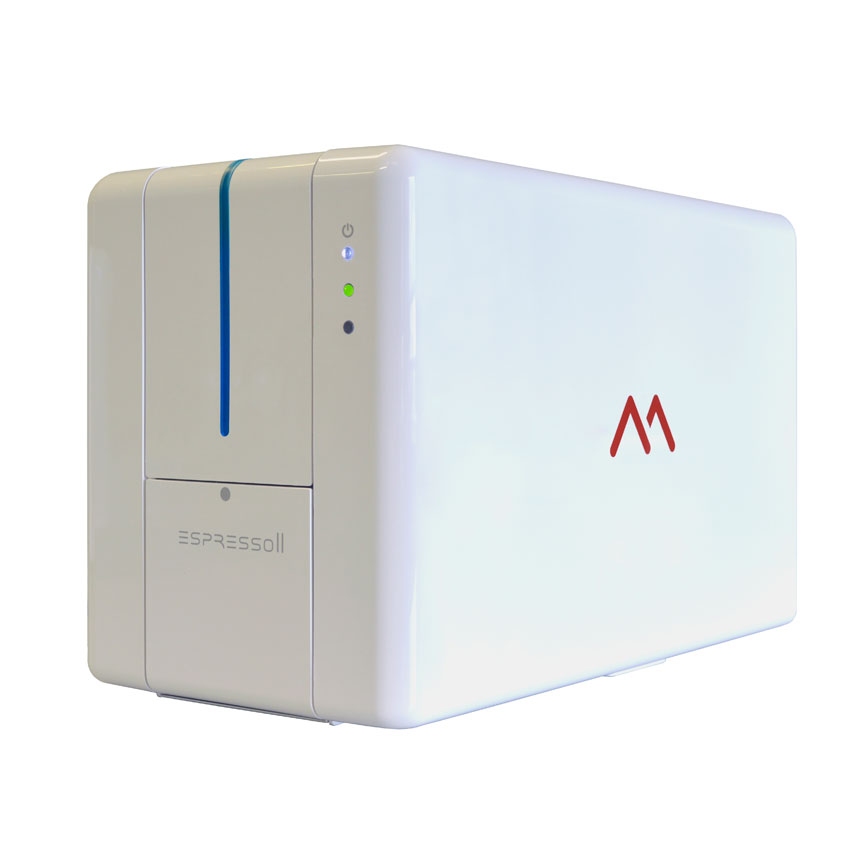

MATICA ESPRESSO II with RFID Print Method, Color dye sublimation or monochrome thermal transfer printer Print mode Single or double side edge-to-edge Print resolution 300 dpi Print speed Monochrome: up to 850 cph Full color: up to 260 cph Encod...

MATICA ESPRESSO II with RFID Print Method, Color dye sublimation or monochrome thermal transfer printer Print mode Single or double side edge-to-edge Print resolution 300 dpi Print speed Monochrome: up to 850 cph Full color: up to 260 cph Encoding options Magnetic stripe encoding: ISO, 3 tracks HiCo/LoCo, JIS2 Contact and contacless smart card encoding Card compatibility PVC, Composite PVC, ABS (varnished), PET ISO CR80 - ISO 7810 (53,98 x 85,60 mm) 0,25 - 1,25 mm (10 - 50 mil) Card hoppers Input hopper: 100 cards / 0.76 mm Output hopper: 80 cards Rear output hopper / reject hopper: 80 cards Card feeder Automatic Manual as an option Connectivity USB 2.0 high speed and Ethernet Supported operating systems Windows 7, 8.1, 10 (32 & 64 bits) Software Matica Printer Driver and Printer Manager EDIsecure® Connect Driver, IPM option (cluster), SDK Consumables Matica Genuine Consumables Printer dimensions (L x W x H) 395 x 200 x 253 mm without reject bin (15.35” x 7.7” x 9.61”) 500 x 200 x 253 mm with reject bin (19.11” x 7.7” x 9.61”) Weight 6.6 kg

MATICA ESPRESSO II with RFID Print Method, Color dye sublimation or monochrome thermal transfer printer Print mode Single or double side edge-to-edge Print resolution 300 dpi Print speed Monochrome: up to 850 cph Full color: up to 260 cph Encod...

MATICA ESPRESSO II with RFID Print Method, Color dye sublimation or monochrome thermal transfer printer Print mode Single or double side edge-to-edge Print resolution 300 dpi Print speed Monochrome: up to 850 cph Full color: up to 260 cph Encoding options Magnetic stripe encoding: ISO, 3 tracks HiCo/LoCo, JIS2 Contact and contacless smart card encoding Card compatibility PVC, Composite PVC, ABS (varnished), PET ISO CR80 - ISO 7810 (53,98 x 85,60 mm) 0,25 - 1,25 mm (10 - 50 mil) Card hoppers Input hopper: 100 cards / 0.76 mm Output hopper: 80 cards Rear output hopper / reject hopper: 80 cards Card feeder Automatic Manual as an option Connectivity USB 2.0 high speed and Ethernet Supported operating systems Windows 7, 8.1, 10 (32 & 64 bits) Software Matica Printer Driver and Printer Manager EDIsecure® Connect Driver, IPM option (cluster), SDK Consumables Matica Genuine Consumables Printer dimensions (L x W x H) 395 x 200 x 253 mm without reject bin (15.35” x 7.7” x 9.61”) 500 x 200 x 253 mm with reject bin (19.11” x 7.7” x 9.61”) Weight 6.6 kg
