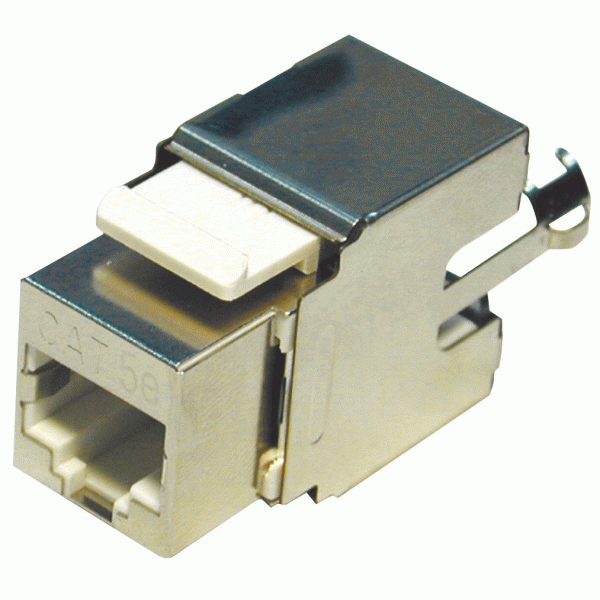

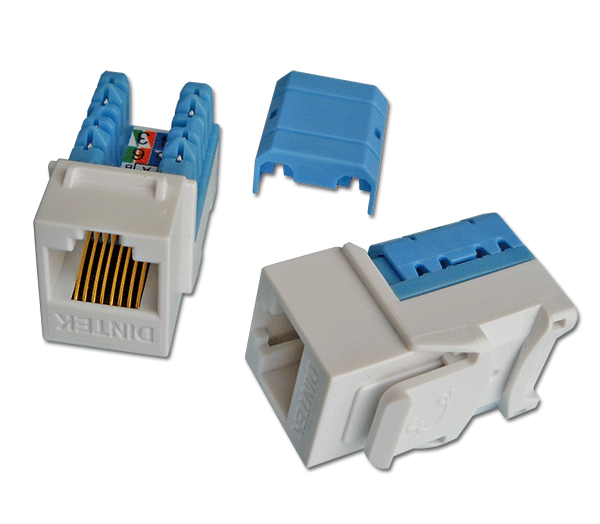

FEATURES Meet all category 5e channel performance requirements specified in ANSI/TIA-568-C.2
110 type IDC termination
Accept 22~26AWG, stranded or solid wire
Modular jack meet FCC part 68
Wiring: T568A/B
IDC connector with large space between each pair to improve crosstalk
Press fit IDC connector terminal for high frequency application
ENVIRONMENTAL CONDITIONS Temperature range: Storage: -40 to +70°C, Operational: -10 to +60°C
Relative humidity (operational): max. non-condensing 93%
ELECTRICAL CHARACTERISTICSInsulation resistance between any two conductors: 500 MegaOhms min.
DC resistance: 0.1 ohms max.
Dielectric with standing voltage: 1000V, RMS, 60HZ, 1 MIN.
Contact resistance: 20 MilliOhms max.
Current rating: 1.5 AMPS at 20°C
PHYSICAL CHARACTERISTICSHousing: High-impact, FLAME-PETARDANT plastic, UL94V-0 rated, spring wire/contact blades.
Contact material: Phosphor bronze alloy
Contact plating: 24 Karat hard gold (50 micro-inch plating thickness) over 100 micro-inch nickel.
MECHANICAL CHARACTERISTICSTotal mating force: 800 grams for a 8 wire leads minimum.
Retention: 30lbs min between the jack and plug.
Insertion/Extraction life: 750 cycles minimum.
Number of IDC terminations: 200 minimum.
